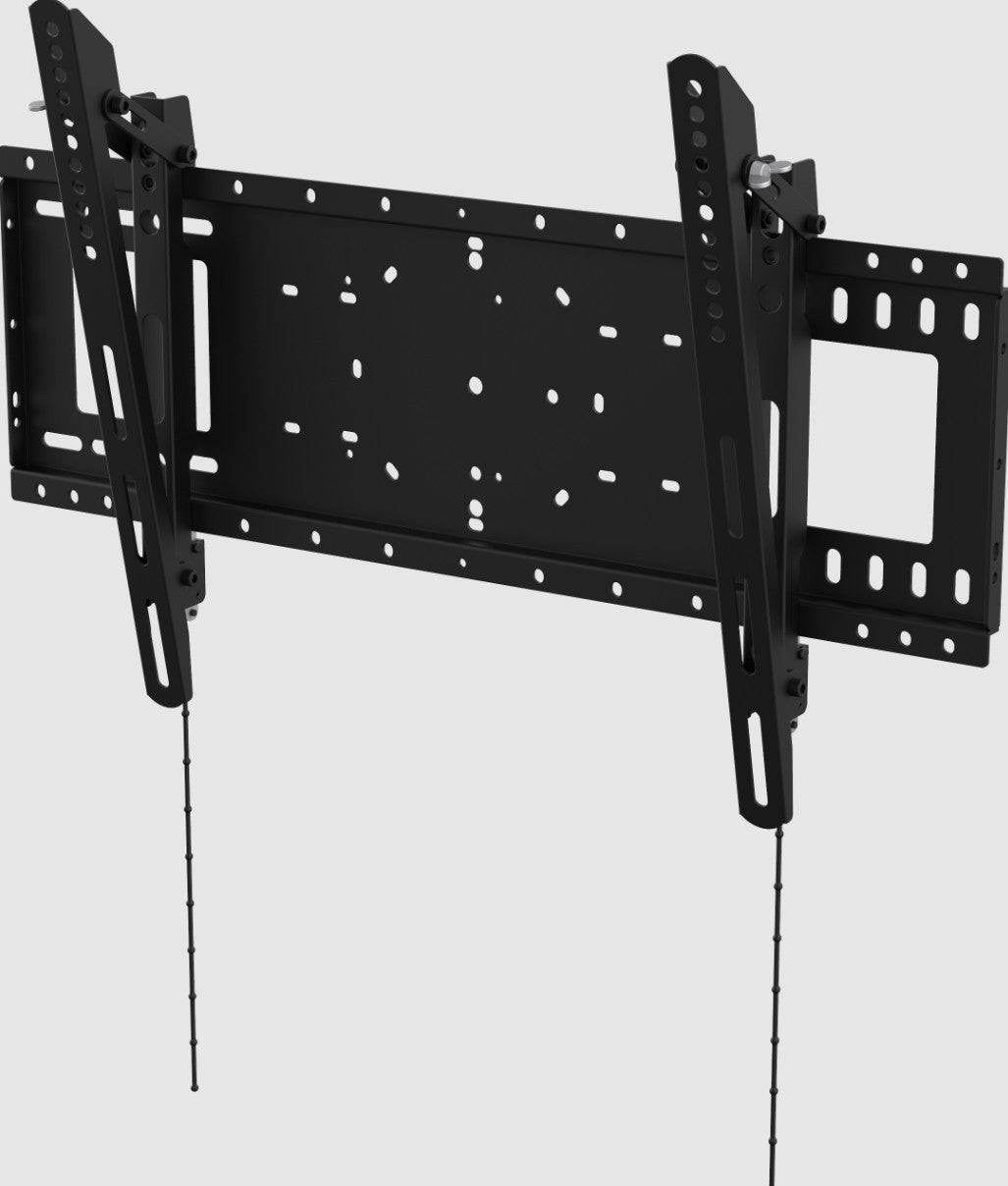

Vision VFM-W6X4T TV mount/stand 190.5 cm (75") Black VFM-W6X4T

The range of Vision Mount Brackets – wall for flat screens has been designed by Vision’s design team for professional AV installers. This bracket has it all: very strong, quick to install, adjustable in multiple ways, everything included. The VFM-W6X4 is suitable for any flat LCD or LED screen with rear mounting holes spaced up to 600 mm apart horizontally and 400 mm apart vertically.

High load capacity
Interactive flat screens are large and exceptionally heavy. Vision’s VFM-W6X4T uses heavy-gauge sheet metal with a safe load capacity of 100 kg / 220 lb.

Everything included
Vision supplies all the necessary hardware, including M5, M6 and M8 screws in various lengths to attach the vertical arms to the rear of the monitor.

For monitors from 37 to 75"
Suitable for most monitors from 37 to 75″. Note: this bracket is not suitable for curved screens.

Complies with ADA regulations (American disability legislation)
Thanks to its slim design, the monitor hangs just 45 mm / 1,8″ from the wall. This not only looks better, but also reduces the risk of the monitor catching on something. And because the weight is close to the wall, the support can handle a higher load.

Designed for professionals
Thanks to the proven design, the flat screen can be mounted quickly, with slotted holes on the wall side allowing the whole unit to be levelled after installation.

Secure click-in
When hanging the monitor, it clicks into place on the horizontal section. Break the plastic pull rods to length so they sit hidden behind the monitor. Give the pull rods a downward tug to release the monitor.

Side by side
For use during video conferencing or in boardrooms, you can join two horizontal sections together so that two monitors sit side by side. Or extend the horizontal section to bridge widely spaced support points in a wall.

Media player out of sight
Thanks to thoughtfully placed 100 x 100 mm VESA holes on the horizontal section, a slim media player can be mounted behind the monitor, out of sight.

Side shelf
An optional fold-up laptop shelf is supplied with an adjustable support arm that attaches to the horizontal section. This can be positioned at the correct height at the side of the monitor. Part number: VFM-WSS [EU SAP: 4857149 / US SAP: not yet confirmed]

Shelf for video conferencing
An optional shelf can be mounted centrally above or below the monitor. Any camera, including the Logitech Rally, can be mounted on the shelf. The shelf is also suitable for Yamaha's VVC-1000 – which can be mounted securely – and Barco's ClickShare base stations. With 100 x 100 mm VESA holes on the vertical section, products such as Heckler’s Zoom Room iPad enclosure can be mounted. Part number: VFM-WVC [EU SAP: 5048878 / US SAP: not yet confirmed]

12° tilt
This bracket has a tilt function to angle the monitor downward, making it ideal for applications where the monitor is mounted high up.
