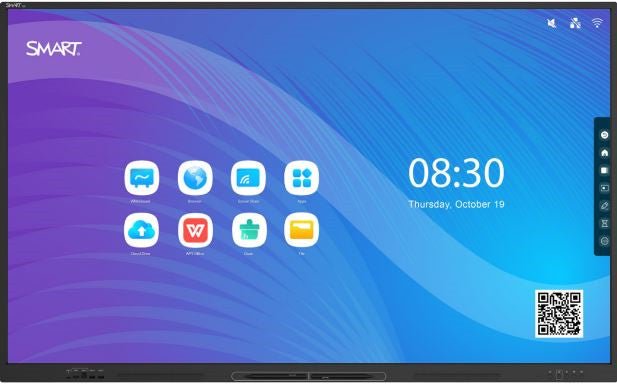

| Product information |
| Brand | SMART Technologies |
| Product series | SMART Board GX V3 |
| Product type | Interactive display |
| Available sizes | 65 inch, 75 inch and 86 inch |
| Order numbers | GX165-V3, GX175-V3 and GX186-V3 |
| Color | Black |
| Display |
| Display technology | LED |
| Maximum resolution | 4K Ultra HD, 3840 × 2160 pixels |
| Aspect ratio | 16:9 |
| Refresh rate | 60 Hz |
| Brightness | 400 cd/m² |
| Display response time | Up to 8 ms |
| Viewing angle | 178° |
| Expected lifespan | At least 50,000 hours |
| Protective glass | Fully thermally tempered, anti-glare and optically bonded glass |
| Control buttons | Power, Home, volume and freeze image |
| Sensors | Ambient light sensor and infrared sensor |
| Interactive features |
| Touch technology | Advanced infrared technology |
| Touch features | Simultaneous tool recognition, Object Awareness and Silktouch |
| Touch response time | Up to 8 ms |
| Touch frequency | At least 125 Hz |
| Accuracy | 1 mm |
| Minimum object size | 2 mm |
| Multitouch Windows | Up to 40 simultaneous touch points |
| Multitouch Android | Up to 32 simultaneous touch points |
| Multitouch macOS | Up to 20 simultaneous touch points |
| Multitouch ChromeOS | Up to 10 simultaneous touch points |
| Included pens | 2 magnetic pens |
| Pen holders | Magnetic and integrated into the frame |
| Integrated Android system |
| Operating system | Android 13.0 |
| Processor | Quad-core processor |
| Memory | 8 GB DDR4 |
| Storage capacity | 64 GB |
| Digital whiteboard | Yes |
| Web browser | Yes |
| Wireless screen sharing | Yes |
| WPS Office | Yes |
| Third-party apps | Supported |
| Cloud storage | Supported |
| Other features | Input selection, file management, overlay, split screen, picture-in-picture with touch control, interactive widgets and app library |
| Supported languages | Including Dutch, English, German, French, Spanish, Italian and Portuguese |
| Software updates | Automatic OTA updates |
| Software |
| Included software | SMART Notebook, SMART Product Drivers and SMART Ink |
| Optional software | SMART Notebook Plus, Lumio, SMART Meeting Pro, SMART TeamWorks and SMART Remote Management |
| Audio |
| Speakers | 2 integrated high-fidelity speakers |
| Speaker power | 2 × 20 W |
| OPS and PC support |
| OPS connection | Yes, 1 integrated OPS slot |
| Supported OPS modules | SMART PCM computer modules |
| OPS power | Up to 90 W |
| Video and audio inputs |
| HDMI inputs | 3 × HDMI 2.0 with HDCP 1.4 and HDCP 2.2 — 1 front and 2 rear |
| DisplayPort | 1 × DisplayPort 1.2 on the rear |
| VGA | 1 × VGA input on the rear |
| Analog audio input | 1 × 3.5mm stereo input on the rear |
| RS-232 | 1 × DB-9 connection on the rear |
| USB connections |
| USB-C front | 1 × USB-C with 4K 60 Hz DisplayPort Alt Mode, touch, digital audio, USB 3.2 Gen 1 and 15 W Power Delivery |
| USB-C rear | 1 × USB-C with 4K 60 Hz DisplayPort Alt Mode, touch, digital audio and USB 2.0 |
| USB-A 3.2 Gen 1 | 4 ports — 2 front and 2 rear |
| USB-A 2.0 | 1 port on the rear |
| USB-B 2.0 for touch | 2 ports — 1 front and 1 rear |
| Outputs |
| HDMI output | 1 × HDMI 2.0 with HDCP 1.4 and HDCP 2.2 |
| Analog audio output | 1 × variable 3.5mm stereo output |
| Optical audio output | 1 × fixed optical S/PDIF output |
| Network and wireless connections |
| Wired network | 2 × RJ-45 Gigabit Ethernet — LAN in and LAN out |
| Wi-Fi | Wi-Fi 6 (IEEE 802.11ax), dual-band 2.4 and 5 GHz |
| Wi-Fi security | WEP, WPA, WPA2, WPA3 PSK and 802.1X EAP |
| Wi-Fi access point | Yes |
| Bluetooth | Bluetooth 5.0 Dual Mode |
| Power consumption and operating environment |
| Power supply | 100–240 V AC, 50–60 Hz |
| Typical consumption 65 inch | 79 W |
| Typical consumption 75 inch | 88 W |
| Typical consumption 86 inch | 119 W |
| Standby consumption | Less than 0.5 W |
| Operating temperature | 0 to 40 °C |
| Storage temperature | -10 to 60 °C |
| Humidity | 20–80% relative humidity, non-condensing |
| Dimensions – 65 inch |
| Model | SMART Board GX165-V3 |
| Dimensions (W × H × D) | 148.3 × 89.9 × 8.8 cm |
| Weight | 37 kg |
| Shipping dimensions | 162 × 116.5 × 16 cm |
| Shipping weight | 54 kg |
| VESA mounting | 600 × 400 mm, M8 |
| Handles | 2 |
| Dimensions – 75 inch |
| Model | SMART Board GX175-V3 |
| Dimensions (W × H × D) | 171.8 × 103.3 × 8.8 cm |
| Weight | 52 kg |
| Shipping dimensions | 182 × 128.5 × 16 cm |
| Shipping weight | 71 kg |
| VESA mounting | 800 × 400 mm, M8 |
| Handles | 2 |
| Dimensions – 86 inch |
| Model | SMART Board GX186-V3 |
| Dimensions (W × H × D) | 196.3 × 117.1 × 8.8 cm |
| Weight | 65 kg |
| Shipping dimensions | 216.5 × 144.5 × 16 cm |
| Shipping weight | 90 kg |
| VESA mounting | 800 × 600 mm, M8 |
| Handles | 4 |
| Included accessories |
| Power cable | 1 country-specific power cable |
| USB cable | 1 × 5 meter USB 2.0 A-to-B cable |
| Pens | 2 |
| Antennas | 2 external dual-band Wi-Fi and Bluetooth antennas |
| Remote control | 1, including 2 AAA batteries |
| Documentation | Illustrated installation instructions and document with important product information |
| Certification and compliance |
| European compliance | CE, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, POP and Ecodesign |
| Other certifications | ENERGY STAR, HDMI and HDCP |
