EVERYTHING YOU NEED IN A DESK PHONE

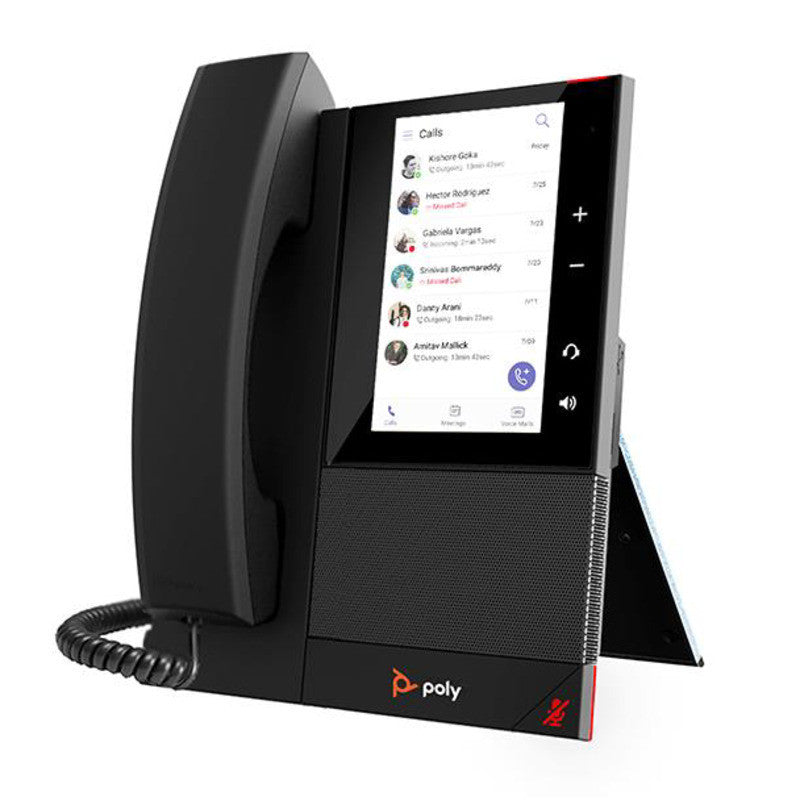

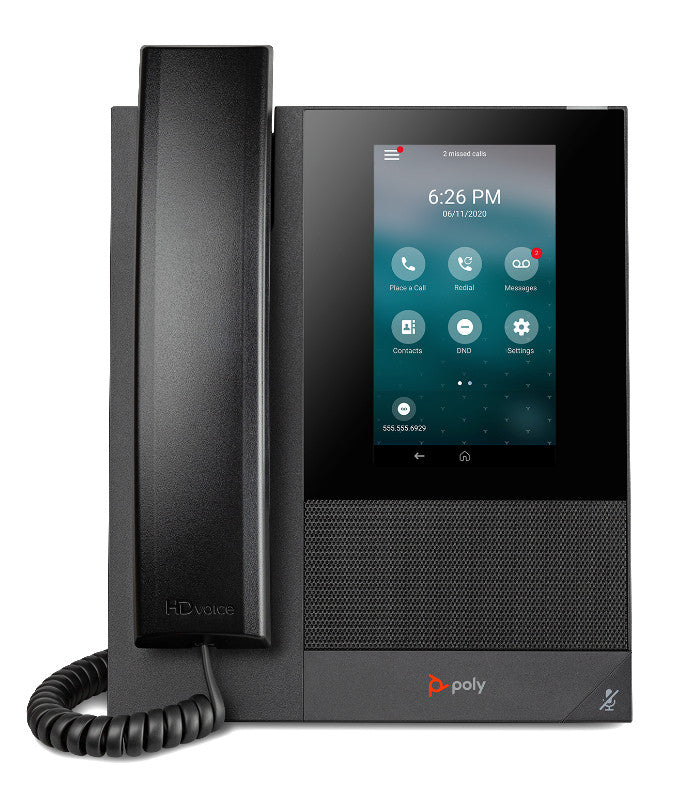

CCX 500 is destined to be the “office standard” in the next-generation CCX family of phones. With a 5-inch color touchscreen, Bluetooth, and Android 9-powered performance, this phone takes audio quality even further. And you can choose a phone with a handset or install it with your favorite headset with the new, modern “no handset” model.
Specifications
| Design |
| Product type | IP Phone |
| Product colour | Black |
| Performance |
| Operating system installed | Android |
| Operating system version | 9 |
| Password protection type | User |
| Hearing aid compatibility | Yes |
| Phone features |
| Caller ID | Yes |
| SIP registrar server | Yes |
| Management features |
| Integrated voicemail | Yes |
| Display |
| Touchscreen | Yes |
| Display | LCD |
| Display diagonal | 12.7 cm (5") |
| Display resolution | 720 x 1280 pixels |
| Aspect ratio | 9 |
| Audio |
| Speakerphone | Yes |
| Voice codecs | G.711, G.722, G.722.1, G.729A, G.729B |
| Voice activity detection | Yes |
| Adaptive jitter buffers | Yes |
| Comfort noise generation (CNG) | Yes |
| Packet loss concealment (PLC) | Yes |
| Network |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth version | 4.2 |
| DHCP client | Yes |
| Event logging | Yes |
| Security algorithms | HTTPS, TLS |
| Syslog | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Ports & interfaces |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 1 |
| Certificates |
| Safety | UL 62368-1, CAN/CSA C22.2 No. 62368-1-14, EN 62368-1, IEC 60950-1 & IEC 62368-1, AS/NZS 62368-1 |
| Certification | Argentina ENACOM\nAustralia RCM\nBrazil ANATEL\nCanada ICES & NRTLC\nChina CCC & SRRC\nEEA CE Mark\nEurasian Customs Union EAC\nIndia WPC\nIndonesia SDPPI\nIsrael MOC\nJapan MIC & VCCI\nMalaysia SIRIM\nMexico IFETEL & NYCE\nNZ Telepermit\nSaudi Arabia CITC\nSingapore IMDA\nSouth Africa ICASA\nSouth Korea KC\nTaiwan NCC\nUAE TRA\nUSA FCC & NRTL |
| Power |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions |
| Width | 105 mm |
| Depth | 52 mm |
| Height | 216 mm |
| Weight | 1.28 kg |
| Packaging content |
| Number of handles included | 0 pc(s) |
| Base station | Yes |
| Manual | Yes |
| Logistics data |
| Harmonized System (HS) code | 85171800 |
