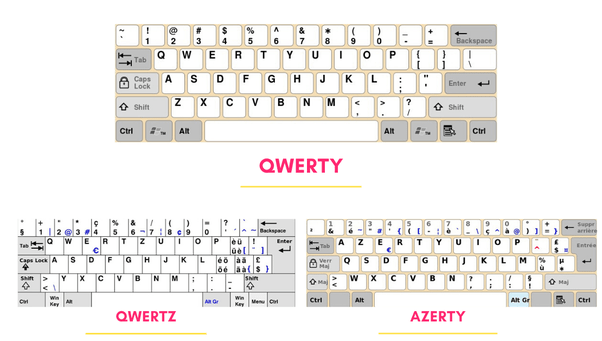

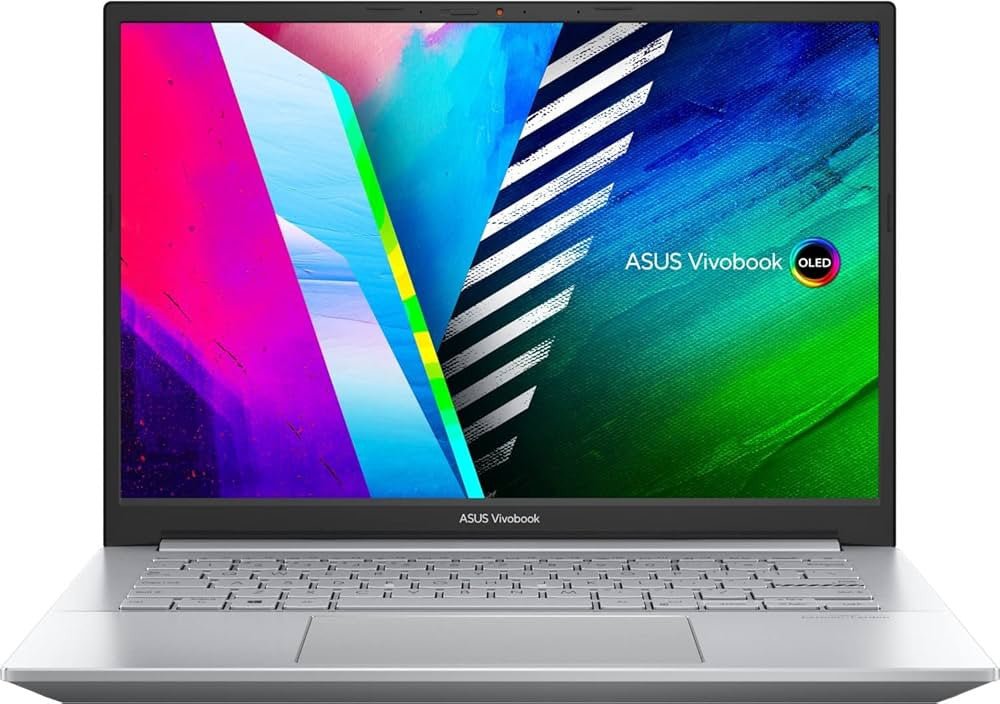

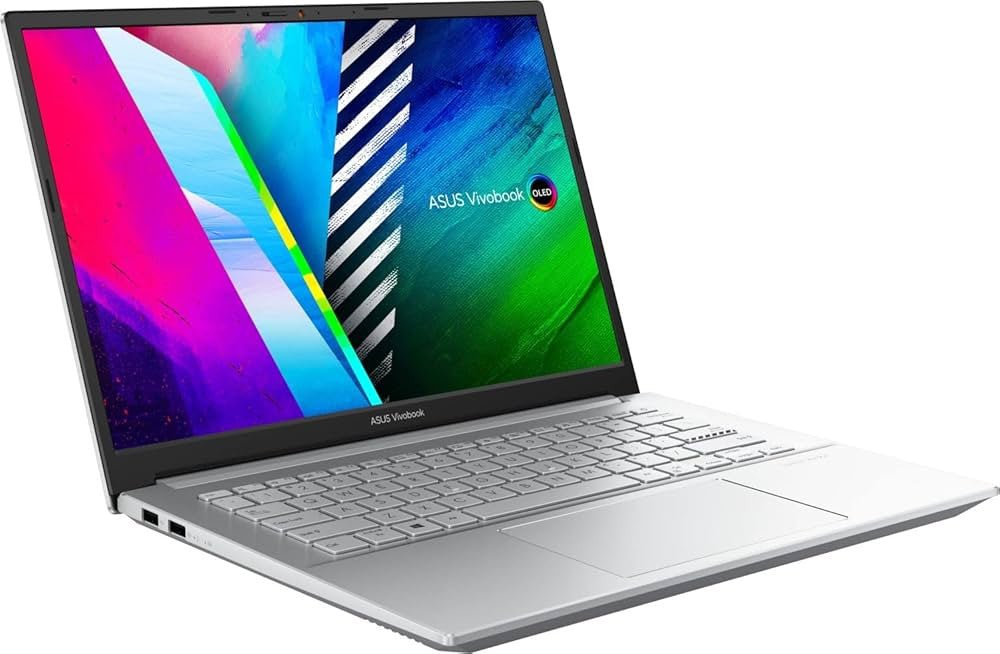

ASUS Vivobook Pro 14 oled I5-11300H/8GB/512GB/14" W11H/QWERTZ 90NB0UY2-M001P0
Specifications
| Design |
| Product type | Laptop |
| Product colour | Blue |
| Form factor | Clamshell |
| Colour name | Dark Blue |
| Housing material | Aluminium, Plastic |
| Market positioning | Home |
| Display |
| Display diagonal | 35.6 cm (14") |
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | No |
| HD type | 2.8K |
| Panel type | OLED |
| Native aspect ratio | 16 |
| Display brightness | 600 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Maximum refresh rate | 90 Hz |
| Processor |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-11300H |
| Processor frequency | 3.1 GHz |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor boost frequency | 4.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 3.1 GHz |
| Configurable TDP-up | 35 W |
| Configurable TDP-down | 28 W |
| Configurable TDP-down frequency | 2.6 GHz |
| Memory |
| Internal memory | 8 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board |
| Storage |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| Audio |
| Built-in microphone | Yes |
| Camera |
| Front camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Network |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Keyboard |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Software |
| Operating system installed | No |
| Processor special features |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery |
| Battery capacity | 63 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Power |
| AC adapter power | 120 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 6 A |
| AC adapter output voltage | 20 V |
| DC-in jack | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security |
| Cable lock slot | No |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, User |
| Weight & dimensions |
| Weight | 1.4 kg |
| Width | 317.4 mm |
| Depth | 228.5 mm |
| Height (front) | 1.92 cm |
| Height (rear) | 1.93 cm |
